Barbed Fence Wire

Transporting round diameter	1100 mm +/- 20 mm
Usage diameter	900 mm
Connection clips per round	7
One barrel rounds qty	100
Main wire diameter	2,8 - 3,0 mm
Recommended stretching length (one barrel)	20 m
Maximum stretching length (one barrel)	25 m
Barrel weight	34.5 kg
Connecting clips size ( lengthwidththickness)	45 mm * 10 mm * 1,5 mm
Connecting clips material	galvanized carbon steel EN10346
Connecting clips galvanizing measure	140 g per square meter
Blade shape	Aggressive, with round shape around the main rod
Blade material	galvanized carbon steel EN10346
Blade thickness	0,50 - 0,55 mm
Blade length	16 - 22 mm
Blade central part width (for wire crimping)	7,5 mm
Blade interval (not more than)	30 mm
Blade galvanizing measure	140 g per square meter
Wire standard	galvanized EN50189 or EN10244-2
Wire galvanizing standard	Hot dipping galvanizing 80 g per square meter (ESEN-10264-2 (DIN 48200 або DIN 2078)
Temporary tensile strength (not less than)	1600 N/square mm

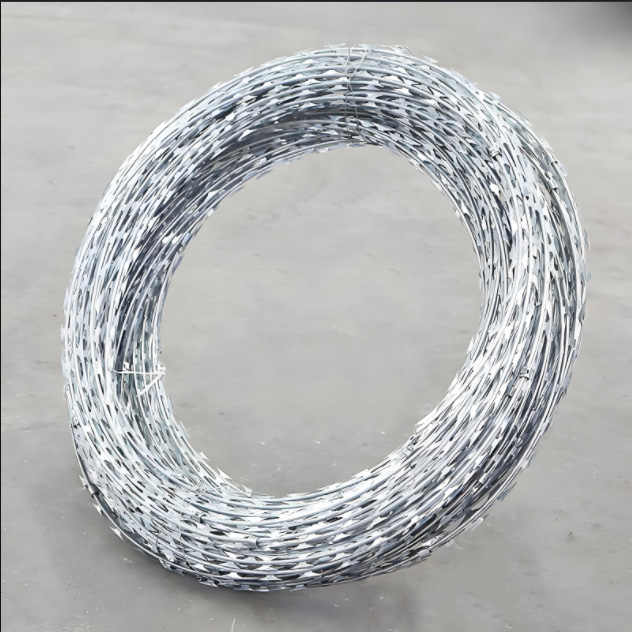

The concertina barbed wire is barrier equipment, which is made of hot-dip galvanized steel sheet or stainless steel sheet punched out of sharp blade shape, high-tensile galvanized steel wire or stainless steel wire as the core wire. Because of the unique shape of the gillnet and it is not easy to touch, it can achieve an excellent protective isolation effect.

Application:

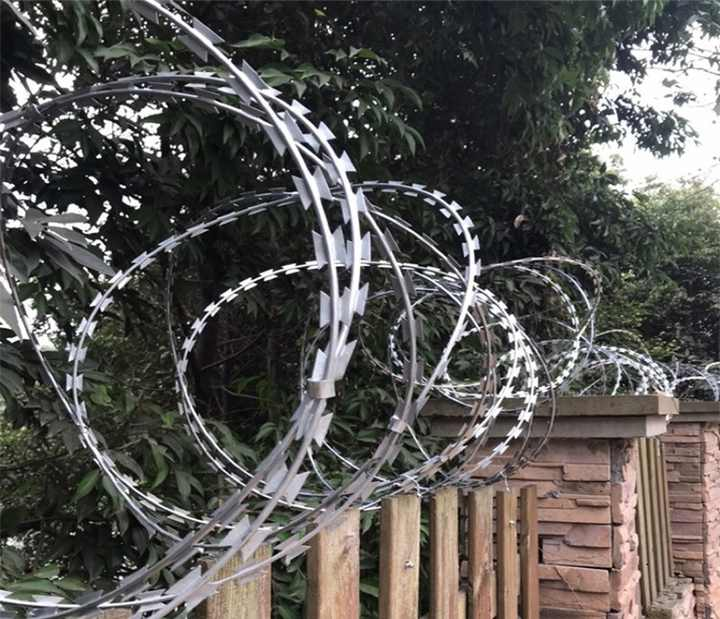

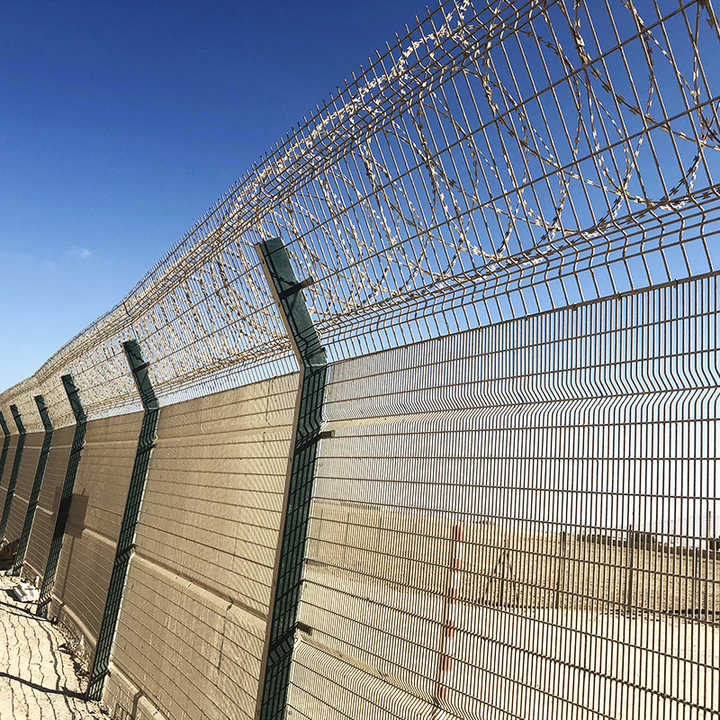

garden apartments, border posts, prisons, detention centers, government buildings and other national security facilities.

Material:

1) Hot-dip galvanized steel sheet + high-tensile galvanized steel wire

2) Stainless steel sheet + Stainless steel wire

Presentation form:

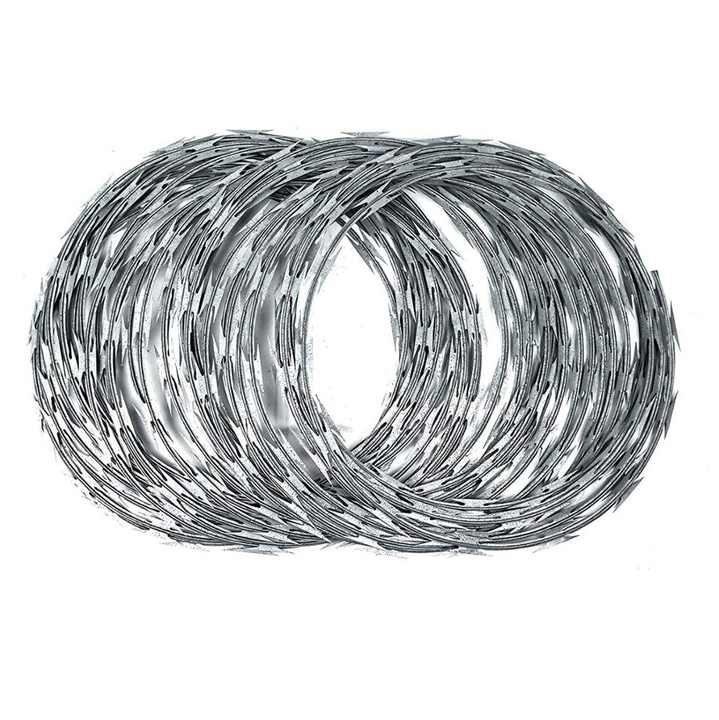

1) Concertina coil type(cross type),

2) Single coil type,

3) Flat type (straight type),

4) Welded razor wire fence type
